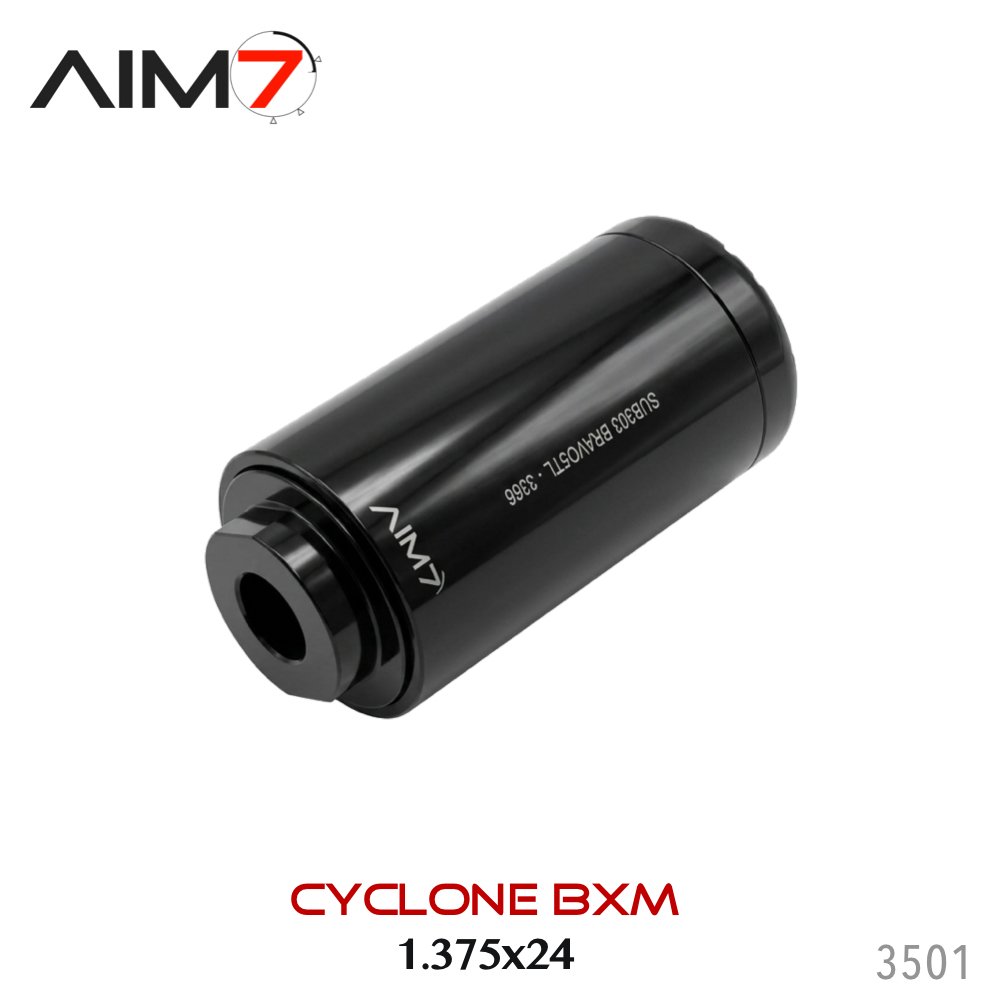

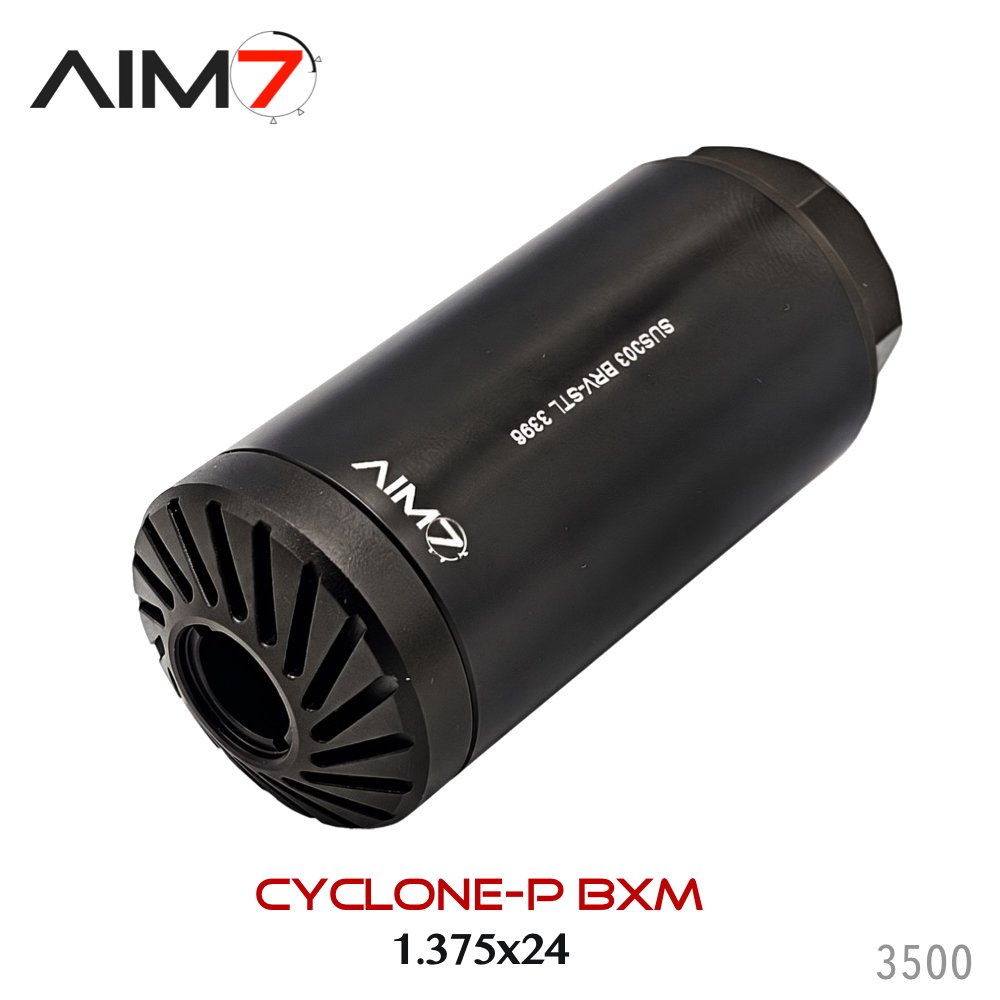

AIM7 MAGIK CYCLONE & BXM MUZZLE Steel Linear Comp 3.2″

AIM7 MAGIK CYCLONE & BXM MUZZLE Steel Linear Comp 3.2″ 1.375×24 HUB Bravo

The AIM7 MAGIK CYCLONE BXM Steel Linear Compensator is a modular muzzle blast forwarding assembly engineered for maximum durability, concentric alignment, and broad Bravo/HUB compatibility. Machined from high-strength SUS303 stainless steel and finished in a resilient black coating, this complete system combines our rugged MAGIK outer tube with the recoil-taming performance of the Aim7 BXM Muzzle Device and the blast-directing Bravo Cyclone front cap.

Engineered for hard-use platforms and short-barrel builds, this setup redirects violent concussion, acoustic concussion, and hot gases straight downrange away from the shooter and teammates while significantly mitigating felt recoil and muzzle rise.

Key System Features

• Aim7 BXM Recoil Management: Features an advanced graduated port brake machined from solid 4140 steel with a QPQ Satin Nitride finish, delivering immediate recoil reduction without requiring timing or shims.
• Sacrificial Baffle Protection: The internal BXM brake acts as a sacrificial barrier, safeguarding modular interfaces and blast-forwarding components from direct high-pressure gas erosion.
• Cyclone Blast Direction: The Cyclone front cap utilizes an internal back cone design that effectively influences muzzle flash and channels explosive blast forward through radial vents.
• Bravo / 1.375×24 Industry Standard: Built entirely around the universal 1.375×24 (1-3/8×24) HUB / Bravo interface for modular adaptability.
• Heavy-Duty Stainless Construction: SUS303 stainless steel body rated for high-heat, high-pressure setups, including short barrels down to 7.5″.

System Specifications

• Overall Length: 3.2″ (assembled with adapters & front cap)
• Outer Diameter (OD): 1.55″
• Tube Wall Thickness: 0.11″
• Thread Interface: 1.375×24 (1-3/8×24) Bravo / HUB Standard
• Front Cap Bore Size: .491″
• Total System Weight: Approx. 11.0 oz (SUS303 Tube: 7.5 oz | BXM Brake: 3.4–3.6 oz)
• Materials & Finish: SUS303 Stainless Steel Tube (Black Finish) | 4140 Steel BXM Brake (QPQ Black Nitride) | 6061 Aluminum Cyclone Cap (Black Anodized)
• Barrel Rating: Rated for barrels 7.5″ and longer (5.56 / .223, .300 BLK, .308, 9mm, and high-pressure calibers)

Component Breakdown

1. MAGIK-S Steel Linear Body: Precision CNC-machined from solid SUS303 stainless steel for extreme structural integrity and heat dissipation.
   Specs: 1.55″ OD | 0.11″ Wall Thickness | 1.375×24 Bravo HUB internal threading.
2. Aim7 BXM Recoil Brake / Hub Mount: Solid 4140 steel brake featuring no-timing graduated gas ports and a durable QPQ black nitride finish.
   Specs: 1.30″ OAL | 1.375×24 Outer Bravo HUB Threads | Available in 1/2×28 TPI (for .223 / 5.56) and 5/8×24 TPI (for .30 Cal / .308 / 7.62 / 9mm). Peel washer included.
3. AIM7 Bravo Cyclone Front Cap: CNC-machined 6061-T6 aluminum cap engineered with an internal back cone profile and radial forward ports.
   Specs: 0.897″ Thickness | .491″ Bore Clearance | Black Anodized.

(Note: Select your barrel muzzle thread pitch—1/2×28 or 5/8×24—from the product options above. Torque spec for the BXM brake is 30–40 ft-lbs; Rocksett or high-temp thread locker is recommended.)

Important Disclosures & Compliance

• Policy & Classification Compliance: THIS ITEM IS NOT A SILENCER, SUPPRESSOR, OR NFA COMPONENT. This product is strictly an open, unbaffled muzzle brake and linear blast deflector designed exclusively for felt-recoil mitigation and downrange blast direction. It contains zero dampening material, acoustic chambers, or sound-muffling components, and does not diminish or suppress the acoustic report of a firearm.
• Safety & Installation Disclosure: Ensure proper caliber clearance and thread compatibility prior to firing. Installation should always be verified by an experienced armorer or certified gunsmith to guarantee proper alignment. Always ensure your firearm is completely unloaded with the chamber clear and pointed in a safe direction before maintenance or installation.
• Legal Compliance: It is the buyer’s sole responsibility to verify and comply with all applicable local, state, and federal firearms laws and regulations before purchasing or mounting this hardware. By purchasing, you certify you meet all legal age and eligibility criteria.
• California Proposition 65 Warning: This product may expose you to trace chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
